Infinium Edge 400 Electrosurgical Generator ( ESU )
Infinium Edge 400 Electrosurgical Generator ( ESU )
Vendor
Restful RelaxationSKU
000.928.0005Estimated delivery: 5 - 7 business days
Description
Shipping and Returns

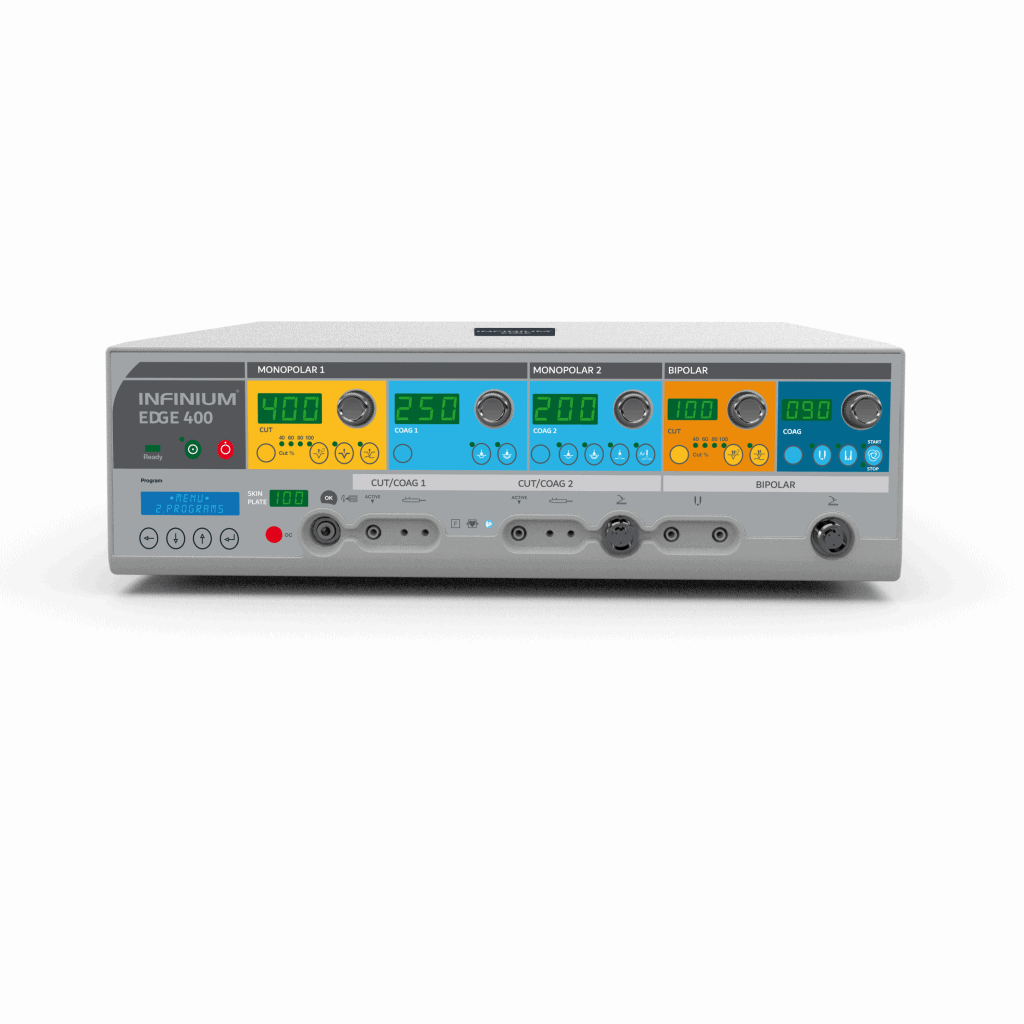

The Infinium EDGE 400 is a high-frequency electrosurgical generator ideal for monopolar and bipolar surgery with a wide range of high-precision applications. The system is engineered to execute minimally invasive surgical procedures with resection, evaporation, and coagulation.
Available Modes of Operation:
- Pure CUT
- Monopolar Cut-Coagulation Blend
- Incision with Reduced Eschar – ENHANCED
- Superficial Coagulation – FORCED COAG
- Deep Coagulation – SOFT COAG
- Spray Coagulation
- Bipolar Coagulation
- Bipolar Cut-Coagulation Blend
Safety
The EDGE 400 allows for professional surgery thanks to advanced user-friendly and safety solutions. The connection of the split neutral electrode and plate is automatically monitored for patient safety. For ease of use and focus, power output can be adjusted from the hand control to allow surgeons to have a continuous focus on the surgical field.
EDGE 400 Features
- Advanced surgeon and patient safety features
- (2) Independent monopolar & bipolar output
- Forced, soft, and spray coagulation
- Enhanced cutting for eschar-free incision with selectable bleed control & slow blend
- Bipolar vessel sealing up to 7mm
- 10 working memory settings
- Monopolar activation with handle and/or pedal
- Digital power regulation and output indicator
Target Procedures
- General Major Surgery
- Endoscopy & GI
- Urology & TURP
- Gynecology
- Otorhinolaryngology
- Orthopedics
- Pediatric Surgery
- Trauma
- Pneumology
- Vascular
Included Accessories
- Disposable handle with switches (5pcs)
- Reusable handle with switches
- Blade electrode 7 cm (3 pcs)
- Blade electrode 16 cm (3 pcs)
- Needle electrode 7 cm (3 pcs)
- Ball electrode 6 cm (3 pcs)
- Cable for neutral electrode
- Disposable split neutral electrode (5pcs)
- Double water-proof foot-switch (2 pcs)
- Power supply cable 5 mt
Technical Specifications
| Max Power CUT | 400W – 300Ω |
| Max Power CUT-Coag 80% | 300W – 300Ω |
| Max Power CUT-Coag 60% | 250W – 300Ω |
| Max Power CUT-Coag 40% | 200W – 300Ω |
| Max Power ENHANCED | 250W – 500Ω |
| Max Power BLEND | 250W – 300Ω |
| Max Power FAST Coag | 120W – 500Ω |
| Max Power DEEP Coag | 120W – 200Ω |
| Max Power SPRAY COAG | 120W – 2000Ω |
| Max Power SPRAY ARGON | 120W – 2000Ω |
| Max Power BIPOLAR CUT | 120W – 50Ω |
| Max Power BIPOLAR CUT | 120W – 50Ω |
| Max Power BIPOLAR CUT-COAG CUT 80% | 120W – 50Ω |
| Max Power BIPOLAR CUT-COAG CUT 60% | 120W – 50Ω |
| Max Power BIPOLAR CUT-COAG CUT 40% | 100W – 50Ω |
| Max Power BIPOLAR CUT-COAG BLEND | 120W – 150Ω |
| Max Power BIPOLAR CUT-COAG COAG | 120W – 50Ω |
| Max Power VESSEL SEALING | 200W – 50Ω |
| Working Frequency MONO/BIPOLAR | 425KHz/600KHz |
| Patient Circuit | F |
| Mains Voltage | 115-230 Vac |
| Mains Frequency | 50-60 Hz |
| Electrical Input Power | 1000 VA |
| Size WxHxD | 470x150x400 Mm |
| Weight | 17.5 Kgs |
