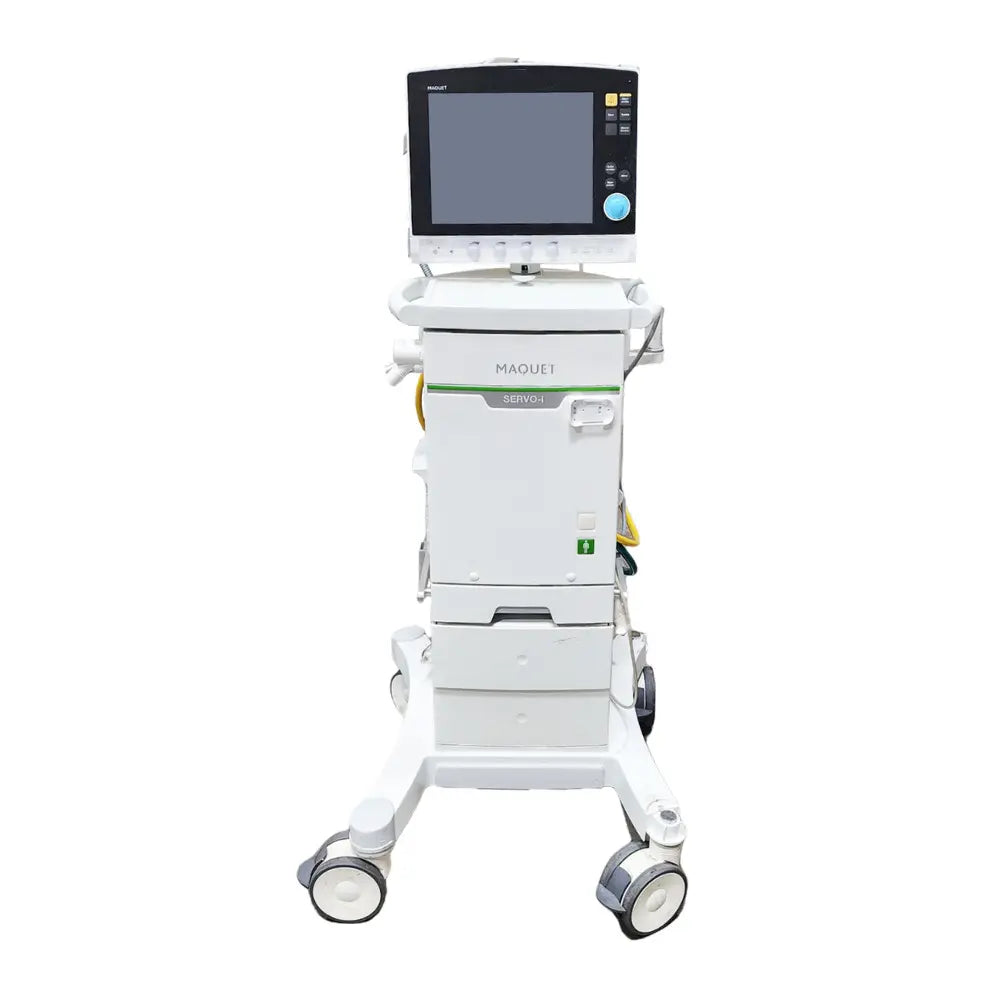

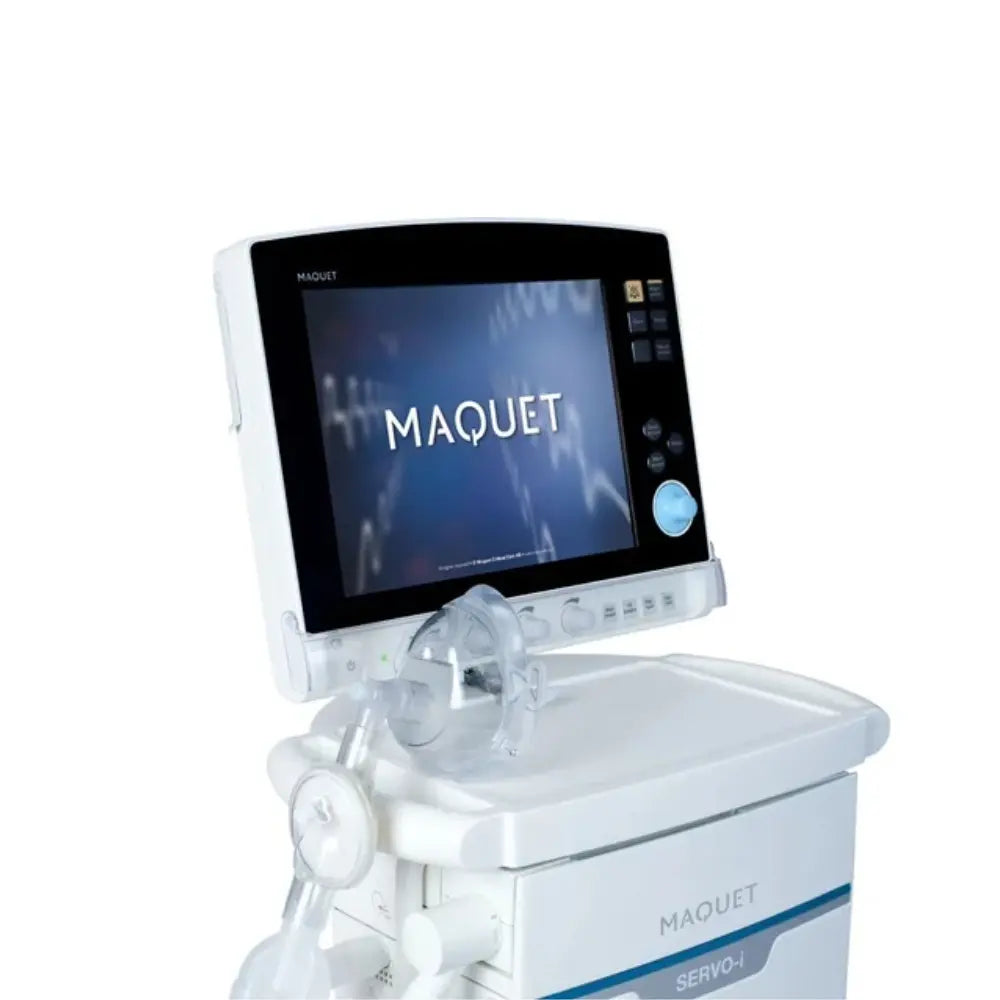

Refurbished – Maquet Servo i Respiratory Ventilator

Refurbished – Maquet Servo i Respiratory Ventilator

SKU

000.938.0007
Regular price $13,650.00
Sale price $13,650.00 Regular price
OFF Sold out
Shipping calculated at checkout.

Estimated delivery: 5 - 7 business days

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
View full details

The Maquet SERVO i ventilation system is flexible for use on neonatal, pediatric, and adults patients.  It has the ability to handle the most acute phases of respiratory distress, through recovery, and to the waning phases of the ventilation process. The SERVO-i continuously delivers outstanding respiratory treatment as gentle and natural as possible. It offers performance monitoring and a wide variety treatment options. The Servo i is suitable for most environments from the ICU to the NICU department. It allows practitioners to choose the treatment option based on the patient’s needs without having to worry about the ventilator’s capabilities.

Servo-i supports both invasive and non-invasive ventilation. It combines the highest level of clinical performance with outstanding mobility and cost efficiency. Ease of training, operation, and maintenance, as well as flexibility and modularity, ensures a low life-cycle cost.

  • Enables treatment of all patient categories.
  • Transportation with no loss of treatment quality within and between hospitals.
  • Allows for investigation of different treatment options like Open Lung Tool and Automode.
  • Invasive ventilation.
  • Non-invasive ventilation with leakage compensation.
  • CO2 Analyzer for end tidal carbon dioxide measurement that may give important insight into the efficiency of the ventilation.
  • Y sensor measurement, for neonatal/pediatric and adult patients. Enables measurement of pressure and flow as close to the patient’s airway as possible.
  • Nasal CPAP.
  • Heliox – gives a more laminar flow that reduces work of breathing.
  • Stress Index – will monitor hyperinflation or repeated alveolar collapse, thus allowing the identification of injurious ventilation (VILI).7
  • Ventilation Record Card – Facilitates research work and presentations.
  • Maquet ventilator accessories and consumables that are fully tested and designed to work optimally with Servo ventilators.

Key Add-On / Accessories

Fisher & Paykel MR850 Heated Humidifier

Power supply

Invasive ventilation Expiratory channel
  • Power supply, automatic range selection
  • 100 – 120 V AC ±10% – 50 – 60 Hz
  • 220 – 240 V AC ±10% – 50 – 60 Hz
  • Plug-in battery module
  • Battery backup: Two battery modules are delivered with the ventilator.
    • 100 – 120 V AC ±10% – 50 – 60 Hz
    • 220 – 240 V AC ±10% – 50 – 60 Hz
  • Battery capacity: Rechargeable, 12 V, 3.5 Ah each
  • Recharge time: Approximately 3 h/battery
  • Battery backup time: At least 3 h, when using six batteries.
  • External 12 V DC: 12.0 V – 15.0 V DC, 10 A
  • Max power consumption
    • At 100 – 120 V: 2 A, 190 VA, 140 W
    • At 220 – 240 V: 1 A, 190 VA, 140 W
  • Inspiratory tidal volume
  • Adult 100–4000 ml
  • Infant 2–350 ml
  • Inspiratory flow ≤200 l/min
  • PEEP 0–50 cmH2O
  • Pressure above PEEP
  • Adult 0– (120-PEEP) cmH2O
  • Infant 0 –(80-PEEP) cmH2 O
  • Pressure drop: Max. 3 cmH2O at a flow of 1 l/s
  • Internal compressible factor: Max. 0.1 ml/cmH2O
  • PEEP regulation: Microprocessor controlled valve
  • Rise Time, Expiratory Flow Measurement: <12 ms for 10 – 90 % response at flow of 0.05 – 3.2 l/s
  • Expiratory flow range: 0 to 3.2 l/s

Non-Invasive Ventilation

Inspiratory channel Dimensions
  • PEEP 2–20 cmH2O
    • Pressure above PEEP 0– (62-PEEP) cmH2 O
  • Leakage compensation
    • Adult
      • Inspiratory, up to 200 l/min
      • Expiratory, up to 65 l/min
    • Infant
      • Inspiratory, up to 33 l/min
      • Expiratory, up to 25 l/min
      • Nasal CPAP, up to 20 l/min
  • Pressure drop: Max. 6 cmH2O at a flow of 1 l/s
  • Internal compressible factor: Max. 0.1 ml/cmH2O
  • Gas delivery system: Microprocessor controlled valve
  • Inspiratory flow range:
    • Adult: 0 to 3.3 l/s
    • Infant: 0 to 0.55 l/s
  • Height: 51.8 In (131.5 cm)
  • Width: 22 In (56 cm)
  • Depth: 25.2 In (64 cm)
  • Weight: 44.1 lbs (20 kg)
Operating conditions General Connectivity/Screen
  • Operating temperature: +10 to +40ºC
  • Relative humidity: 15 to 95% non-condensing
  • Atmospheric pressure: 660 to 1060 hPa
  • Lowest pressure in breathing system: –400 cmH2O
  • Method of triggering: Flow, pressure and Edi (optional)
  • Max. operating pressure: Approximately 115 cmH2O
  • Bias flow: 2 l/min
  • External device interfaces 2xRS232, remote alarm, MCare remote service
  • IHE technical framework MSync HL7 converter
  • Type: TFT-LCD module
  • Size: 31 cm (12.1”) diagonal
  • Viewing area: 246.0 x 184.5 mm
