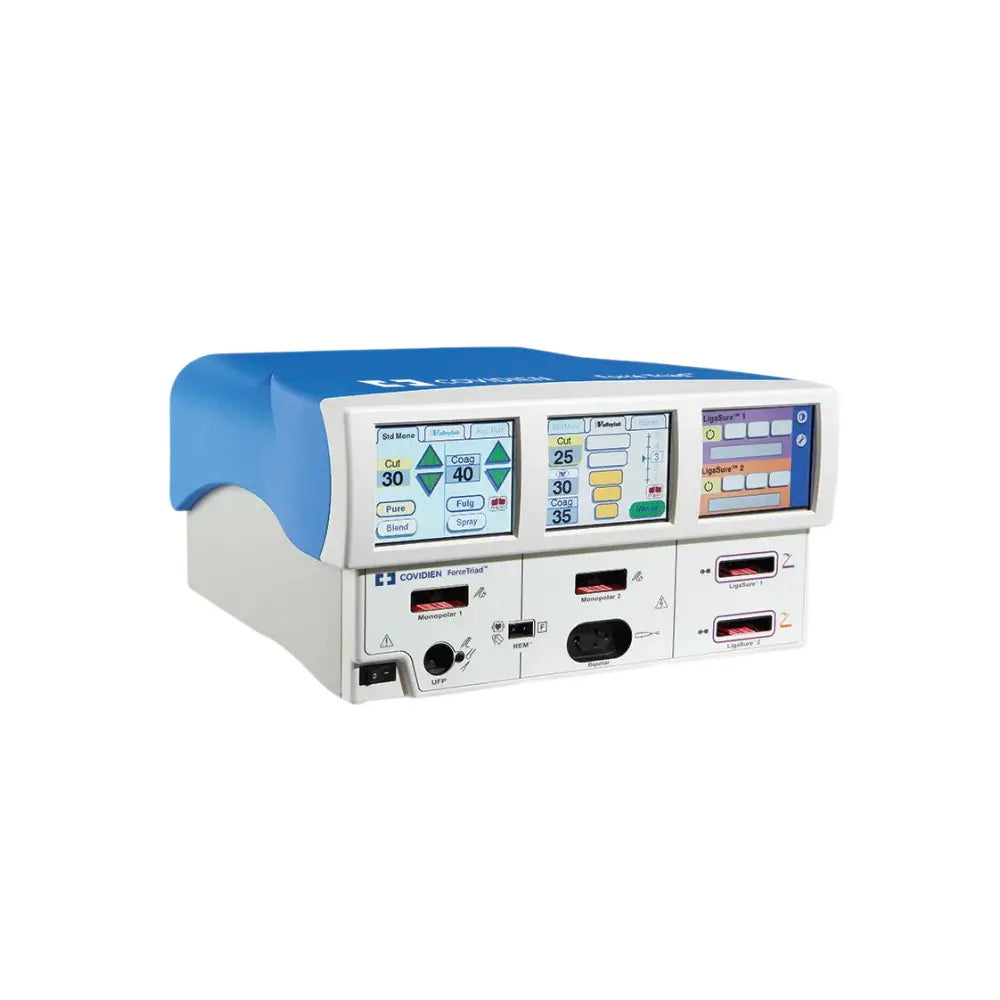

Refurbished Medtronic Valleylab Force Triad
Refurbished Medtronic Valleylab Force Triad
Vendor
Restful RelaxationSKU
000.925.0003Estimated delivery: 5 - 7 business days
Description
Shipping and Returns
Offered as Professionally Refurbished
The ForceTriad™ energy platform is a full-featured electrosurgical system that provides electrosurgical cutting and coagulation, bipolar functionality, and vessel sealing in a single generator. The platform is intended for open and laparoscopic surgical procedures and includes:
- TissueFect™ sensing technology across all modalities
- Valleylab™ mode for electrosurgery
- LigaSure™ fusion technology for vessel sealing
The ForceTriad™ energy platform is the industry’s only full-featured energy platform with remote software upgrade capabilities. Using the Valleylab™ Exchange Software Update System, the unit can be easily updated on site, providing surgeons, nurses and patients with up-to-date, state-of-the-art technology.
Specialties utilizing the ForceTriad™ energy platform include:
- Colorectal
- Urology
- Orthopedics
- General Surgery
- Gynecology
FEATURES
- TissueFect™ sensing technology is a Covidien control system designed to precisely manage energy delivery, creating a range of options for desired tissue effect
- Enhanced LigaSure™ tissue fusion technology permanently fuses vessels up to and including 7mm, lymphatics, pulmonary vasculature and tissue bundles
- An optional bipolar resection with saline software application allows surgeons to perform a variety of urologic and gynecologic procedures in a saline environment
- Automatic instrument recognition
- All-in-one unit is compatible with conventional electrosurgical instruments and all current and new LigaSure™ instruments
- Fusion cycles are faster than the original LigaSure™ vessel sealing generator
- Valleylab™ mode provides a unique combination of monopolar hemostatis and dissection
- PER of 98 in Cut
- Connects with RapidVac™ smoke evacuator
- Adaptive REM™ system
Note: All refurbished systems have slightly different features based on exact model, modules, accessories, software updates, and maintenance schedules please consult with your sales representative on the exact configuration and condition of the unit you are purchasing. The products are sourced, repaired, and maintained by professional biomedical and technical engineers.
| GENERAL CHARACTERISTICS | |
|---|---|
| Output configuration | Isolated output |
| Cooling | Natural and forced convection, and fan |
| Display | 3 LCD touch screens 14.5 cm (5.7 in) diagonal |
| Connector ports | LED illuminated smart connector readers |
| Mounting | ForceTriad™ energy platform cart (FT900), universal mounting cart (UC8009), and/or the UC8010 overshelf |
| Operating room boom systems | |
| Any stable, flat surface such as a table or cart top | |
| DIMENSIONS AND WEIGHT | |
| Width | 18 in. (45.7 cm) |
| Depth | 20 in. (50.8 cm) |
| Height | 10 in. (25.4 cm) |
| Weight | 30 lb. (13.6 kg) |
| MONOPOLAR CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
| Mode | PER* | P-P Voltage | Rated Load (Ohms) | Maximum Power (Watts) | Duty Cycle | |
| Bipolar | Low
Standard Macro |
98 | 500
350 500 |
100
100 100 |
95
95 95 |
N/A
N/A N/A |
| Monopolar
Cut |
Pure
Blend |
98 | 1840
2970 |
300
300 |
300
200 |
N/A
50% |
| Valleylab™ Mode | Valleylab | 97 | 4730 | 300 | 200 | 25% |
| Monopolar Coag | Fulgurate
Spray |
95 | 6100
7250 |
120
120 |
120
120 |
6.5%
4.6% |
| LIGASURE™ OUTPUT CHARACTERISTICS | ||||
|---|---|---|---|---|
| Mode | P-P Voltage | Rated Load (Ohms) | Maximum Power (Watts) | Duty Cycle |
| LigaSure™ | 5785 @ 1kΩ | 20 | 350 | N/A |
| INPUT POWER | |
|---|---|
| 100-120 Volt | 220-240 Volt |
| Maximum VA – 1056 VA | Maximum VA – 2080 VA |
| Input mains voltage, full regulation range 90-132 VAC | Input mains voltage, full regulation range 208-264 VAC |
| Input mains voltage, operating range 85-132 VAC | Input mains voltage, operating range 170-264 VAC |
| Mains line frequency range (nominal) 50 Hz to 60 Hz | Mains line frequency range (nominal) 50 Hz to 60 Hz |
| Fuses (2) – 5 mm x 20 mm 8 A, 250 V fast blow | Fuses (2) – 5 mm x 20 mm 8 A, 250 V fast blow |
